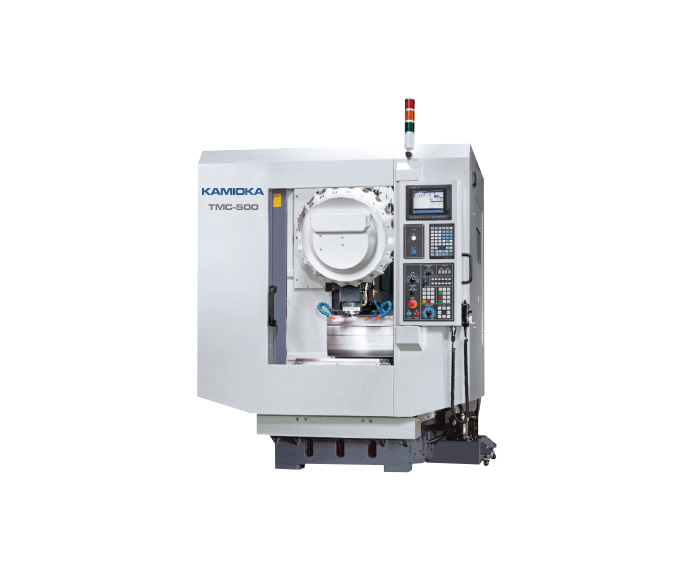

High Speed Vertical Machining Center FORMULA TMC-500
| 分享到： |  |
| FEATURES | |
 |
 |
| 16 pieces clamp type auto tool changer, its body is manufactured from aluminum alloy for reducing the inertia load. | These pneumatic parts are centralized in an enclosed compartment to prevent them from bumping. |
 |
- |
| Wide interior space features good ventilation, efficient chip evacuation. Two coolant flush motors are standard, equipped with the coolant flushing rings for removing heat source from the machine. | - |
| Item/Model No. | Unit | TMC-500 |
| Travel | ||
| X/Y/Z | mm (in.) | 500/400/300 (19.69/15.75/11.81) |
| Z axis-Optional | mm (in.) | - |
| Distance between Columns | mm (in.) | - |
| Table | ||
| Dimension | mm (in.) | 550×400 (21.65×15.75) |
| T-slot (W×No.×CD) | mm | 14×3×125 |
| Max. Table Loading | kg (lb.) | 250 (550) |
| Spindle | ||
| Max. Speed-Standard | rpm | Direct drive 12,000 |
| Max. Speed-Optional | rpm | Direct drive 15,000 |
| Spindle Motor | kW (HP) | M: 3.7/5.5 (5/7) |
| Spindle Taper | BT30 | |
| Spindle Nose to Table Surface | mm (in.) | 150~590 (5.91~23.23) |
| Spindle Center to Column | mm (in.) | 470 (18.5) |
| Feedrate | ||
| Cutting Feedrate | mm/min (ipm) | 1~12,000 (0.04~472.44) |
| X axis Rapid Traverse | mm/min (ipm) | 48,000 (1889.76) |
| Y axis Rapid Traverse | mm/min (ipm) | 48,000 (1889.76) |
| Z axis Rapid Traverse | mm/min (ipm) | 48,000 (1889.76) |
| ATC | ||
| Tools Capacity-Standard | pcs | Turret 16 |
| Tools Capacity-Optional | pcs | - |
| Max. Tool Dia. | mm (in.) | ø80 (ø3.15) |
| Max. Tool Length | mm (in.) | 200 (7.87) |
| Max. Tool Weight | kg (lb.) | 3 (6.6) |
| General Information | ||
| Electrical Power Capacity | KVA | 15 |
| Dimension (W×D×H) | mm (in.) | 1,650×2,600×2,450 (64.96×102.36×96.46) |
| Machinery Weight (Net) | kg (lb.) | 2,850 (6,270) |
●STANDARD EQUIPMENT
1. Full Enclosure Splash Guard
2. Three Axes Ball Linear Guide Ways
3. Telescopic Cover on Three Axes
4. Cutting Coolant Unit
5. Auto Lubrication System
6. Air Blast Through Spindle Taper
7. Air Blow
8. Heat Exchanger in Electric Cabinet
9. Spiral Type Chip Conveyor with Chip Cart
10. Servo Brake System on Z-axis
11. Coolant Tank
12. High Pressure Coolant Gun
13. Work Lamp and Alarm Indicator
14. Service Tools and Leveling Bolts
15. Manual Pulse Generator (Hand-wheel)
16. Mechanical and Electrical Operation Manuals
17. Precision Check Data
18. One Year Warranty for Machine under Normal Operation (From the Date on Bill of Lading)
19. Warranty of Controller depend on Buyer's Location
●OPTIONAL ACCESSORIES
1. Direct-drive 15,000rpm Spindle (3.7/5.5kW, M70)
2. 4th Axis Preparation
3. 4th Axis Rotary Table
4. Tool Setting Probe
5. Workpiece Measurement
6. Spindle Oil Chiller
7. Oil Skimmer
8. Air Conditioner in Electric Cabinet
9. Hinge Type Chip Conveyor
10. Transformer
11. Door Interlock
12. CE
* KAMIOKA reserves the right to change design, color or spec without prior notice.
