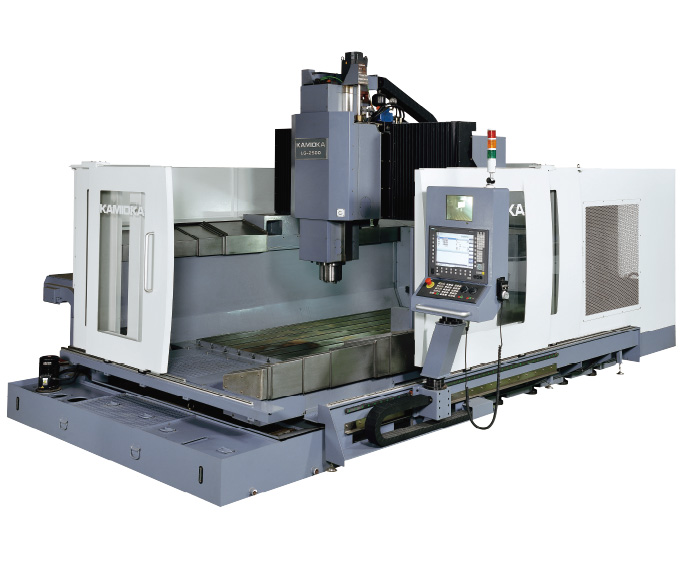

Semi-Gantry Portal Type Machining Center LG-2500
| 分享到： |  |
| FEATURES | |
 |
 |
| ⇑ Rock solid one piece casted L-shape machine body with best accessibility and control for users | ⇑ Umbrella 30 pieces tool magazine |
 |
 |
| ⇑ 1.5m span semi-gantry structure for various kinds of heavy duty machining challenges. The sufficient working space (2400x1100mm) for middle and large size components machining. | ⇑ Powerful 8000rpm BT50 direct drive spindle or compatible with ZF gear box |
| PATENTS | |
 |
⇐ Registered patents for its asymmetric structure of semi-gantry design (No. M363349, M406479) |
| SPECIFICATION | ||
| Item/Model No. | Unit | LG-2500 |
| Travel | ||
| X/Y/Z | mm (inch) | 2,500/1,150/620 (98.43/45.28/24.41) |
| Z axis-Optional | mm (inch) | 800 (31.5) |
| Distance between Columns | mm (inch) | 1,500 (59.06) |
| Table | ||
| Dimension | mm (inch) | 2,400×1,100 (94.49×43.31) |
| T-slot (W×No.×CD) | 22mm×7T×170 | |
| Max. Table Loading | kg (lb.) | 9,000 (19,800) |
| Spindle | ||
| Spindle Taper | BT50 | |
| Max. Spindle Speed | rpm | Direct 10,000 |
| Spindle Motor | kW (HP) | 18.5/22 (25/29) |
| Spindle Nose to Table Surface | mm (inch) | 150~770 (5.91~30.31) |
| Feedrate | ||
| Cutting Feedrate | m/min (ipm) | 1~10 (0.04~393.7) |
| Rapid Traverse X/Y/Z | m/min (ipm) | 20/20/15 (787.4/787.4/590.55) |
| ATC | ||
| Tool Capacity | pcs | BT50, Umbrella 30 |
| Max. Tool Diameter | mm (inch) | ø110 (ø4.33) |
| Max. Tool Length | mm (inch) | 300 (11.81) |
| Max. Tool Weight | kg (lb.) | 15 (33) |
| General Information | ||
| Electrical Power Capacity | KVA | 40 |
| Dimension (W×D×H) | mm (inch) | 4,150×7,000×3,200 (163.39×275.59×125.98) |
| Machine Weight (Net) | kg (lb.) | 18,000 (39,600) |
●STANDARD EQUIPMENT
1. Semi-enclosed Splash Guard (without Roof)
2. X, Y Linear Guide Ways; Z Box Guide Way
3. Telescopic Cover on X and Y -axis
4. Cutting Coolant Unit
5. Auto Lubrication System
6. Air Blast Through Spindle Taper
7. Air Blow
8. Spindle Oil Chiller
9. Air Conditioner in Electric Cabinet
10. Hinge Type Chip Conveyor
11. Servo Brake System on Z-axis
12. Duo-driven Servo Motion on X-axis
13. Work Lamp and Alarm Indicator
14. Service Tools and Leveling Bolts
15. Manual Pulse Generator (Hand-wheel)
16. Mechanical and Electrical Operation Manuals
17. Precision Check Data
18. One Year Warranty for Machine under Normal Operation (From the Date on Bill of Lading)
19. Warranty of Controller depend on Buyer's Location
●OPTIONAL ACCESSORIES
1. Z-axis Travel 800mm
2. Tool Setting Probe
3. Workpiece Measurement
4. Optical Scale
5. Transformer
6. Door Interlock
7. CE
8. Full Enclosure Splash Guard
* KAMIOKA reserves the right to change design, color or spec without prior notice.
