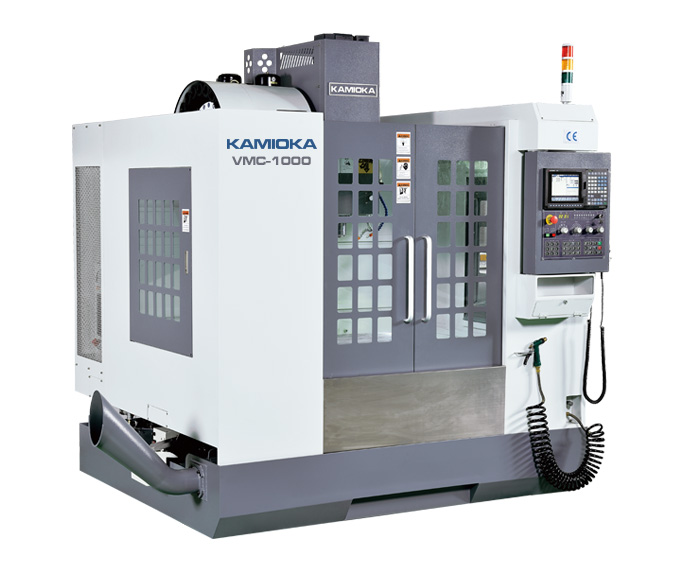

High Performance Vertical Machining Center PERFORMA VMC-1000
| 分享到： |  |
| FEATURES | |
 |
 |

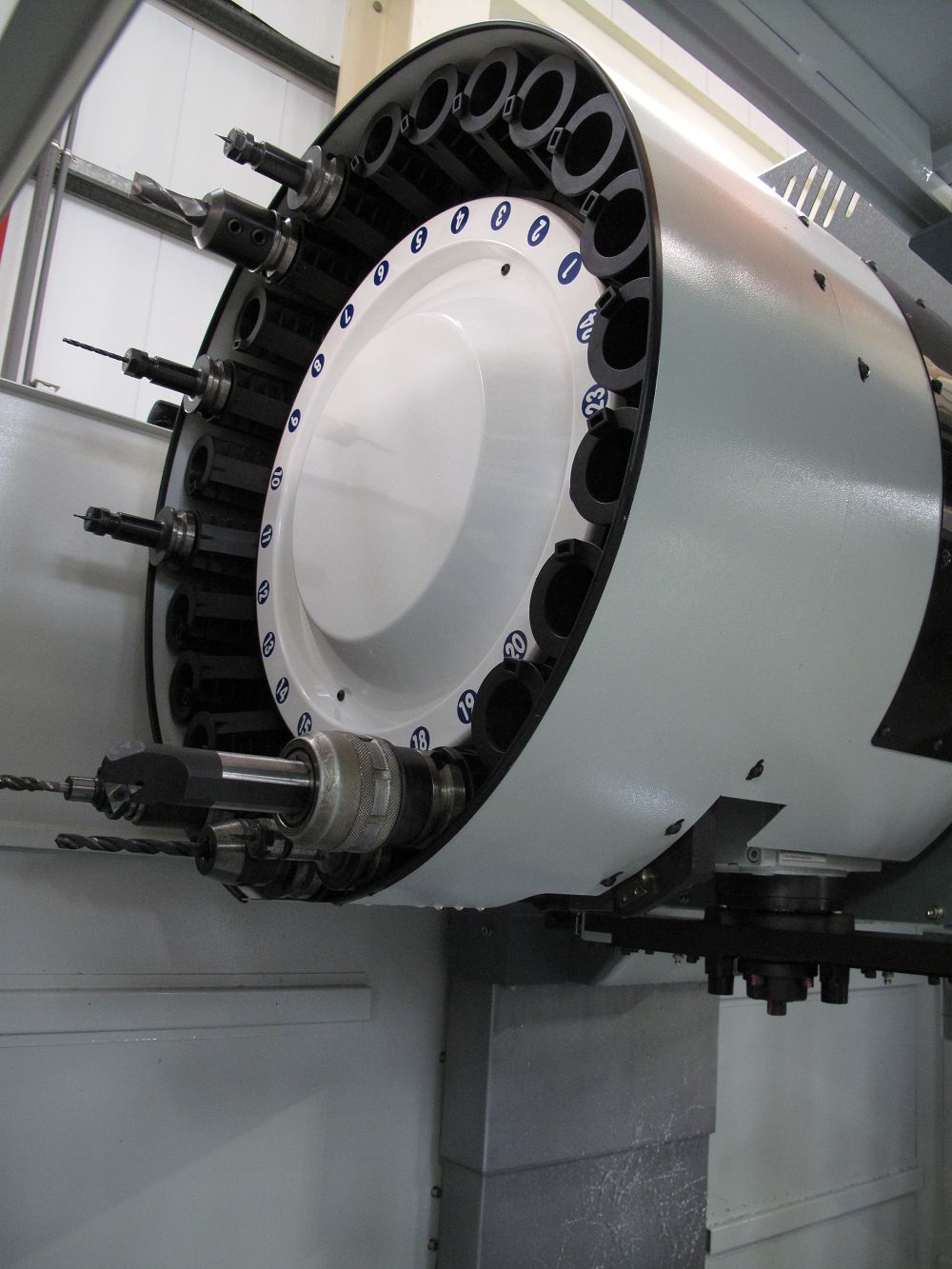

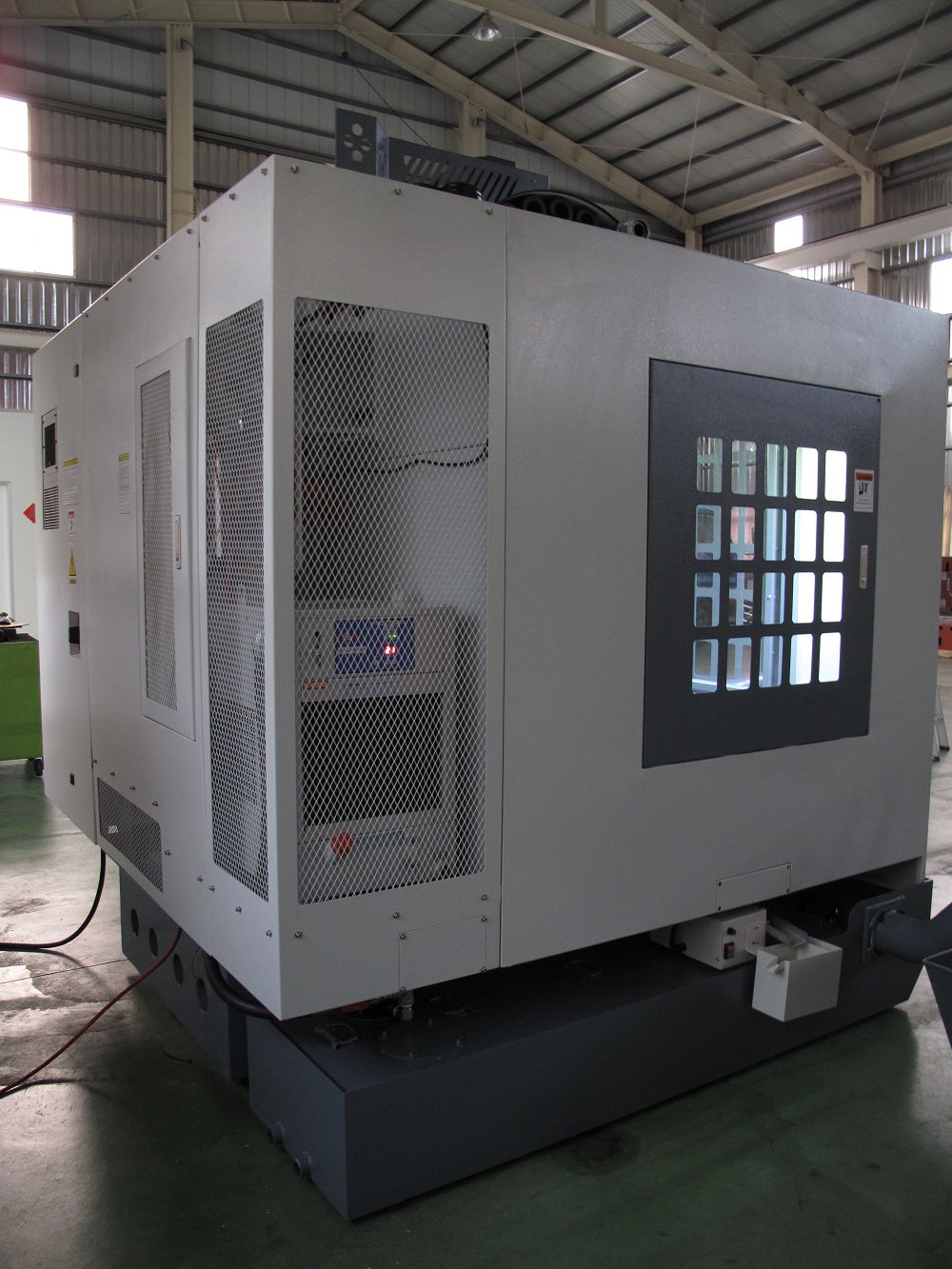

| Complete full enclosure splash guard | 24 pieces swing-arm auto tool changer |
 |
 |

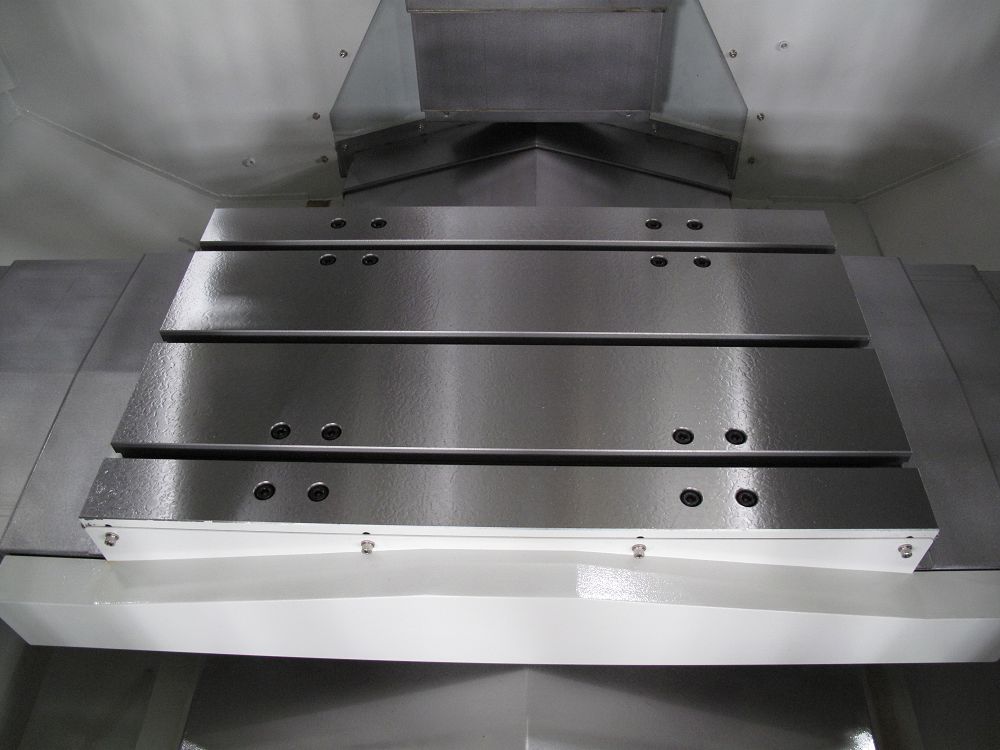

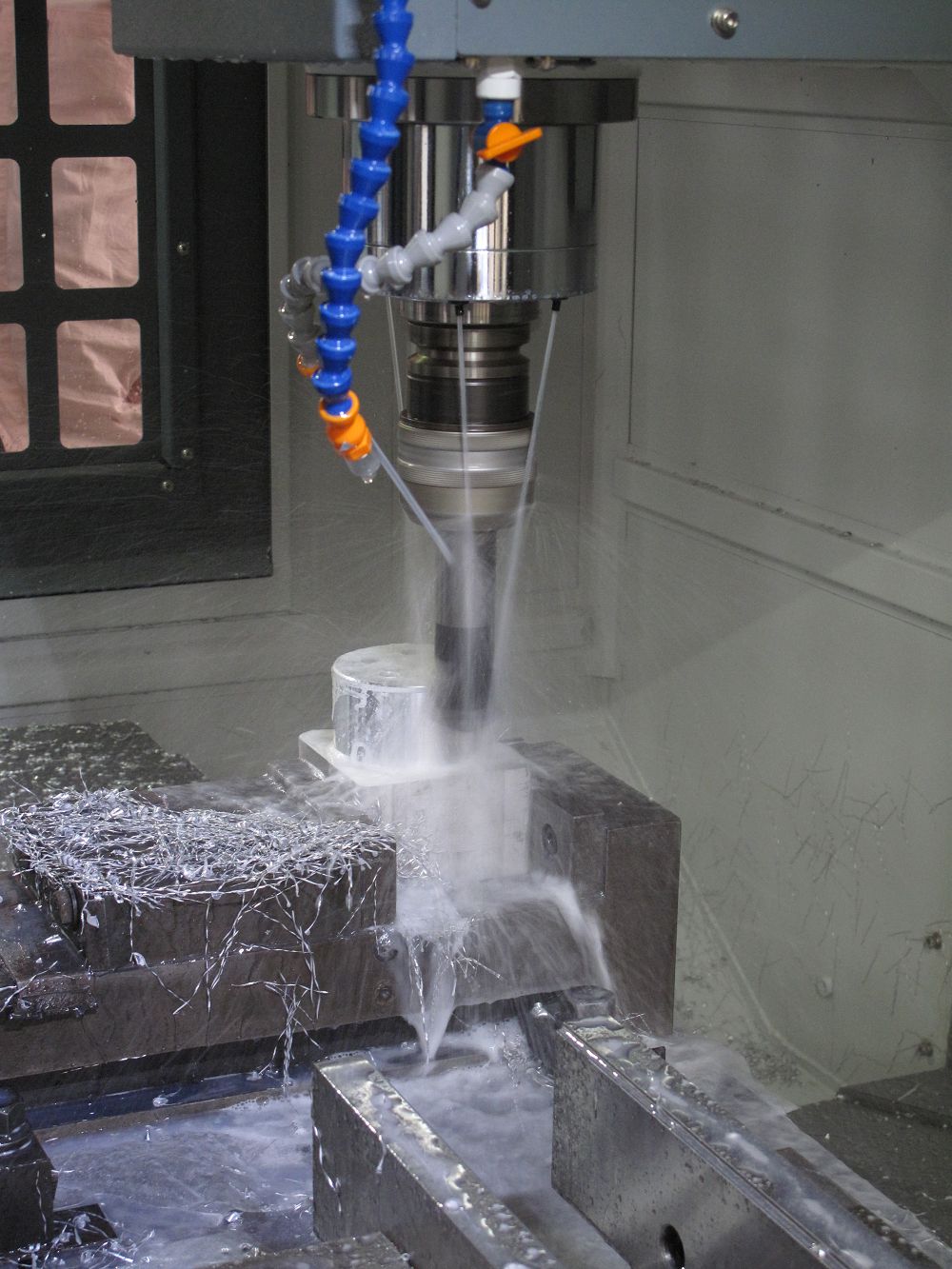

| Four splash nozzles on the spindle surrounded coolant unit | Working table size 1000x500mm |
 |
 |

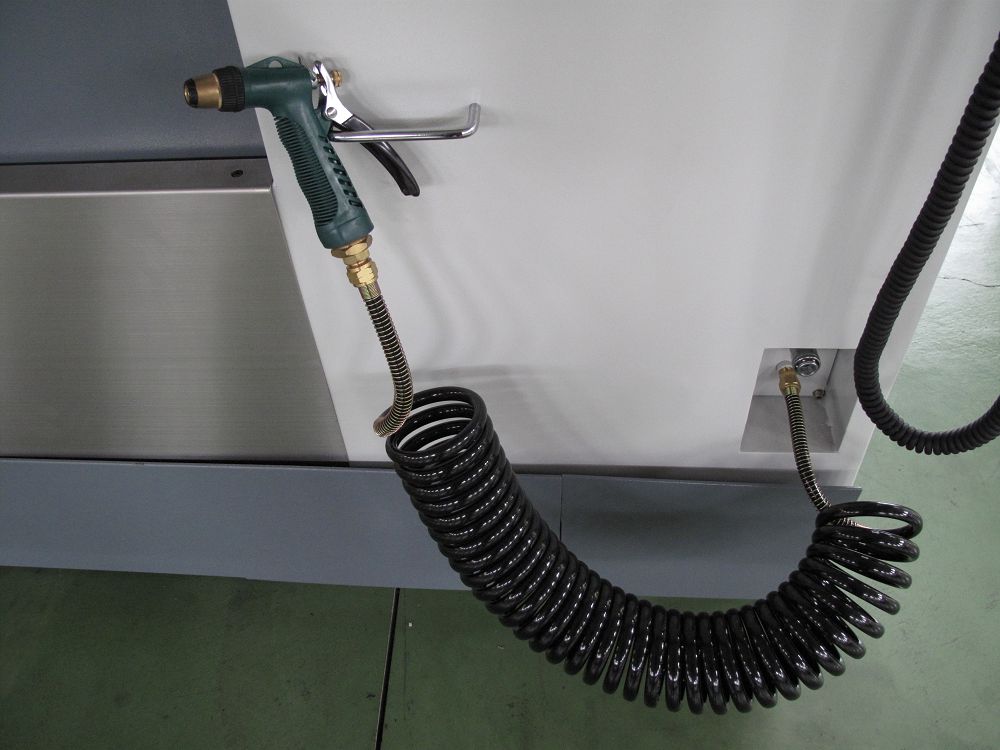

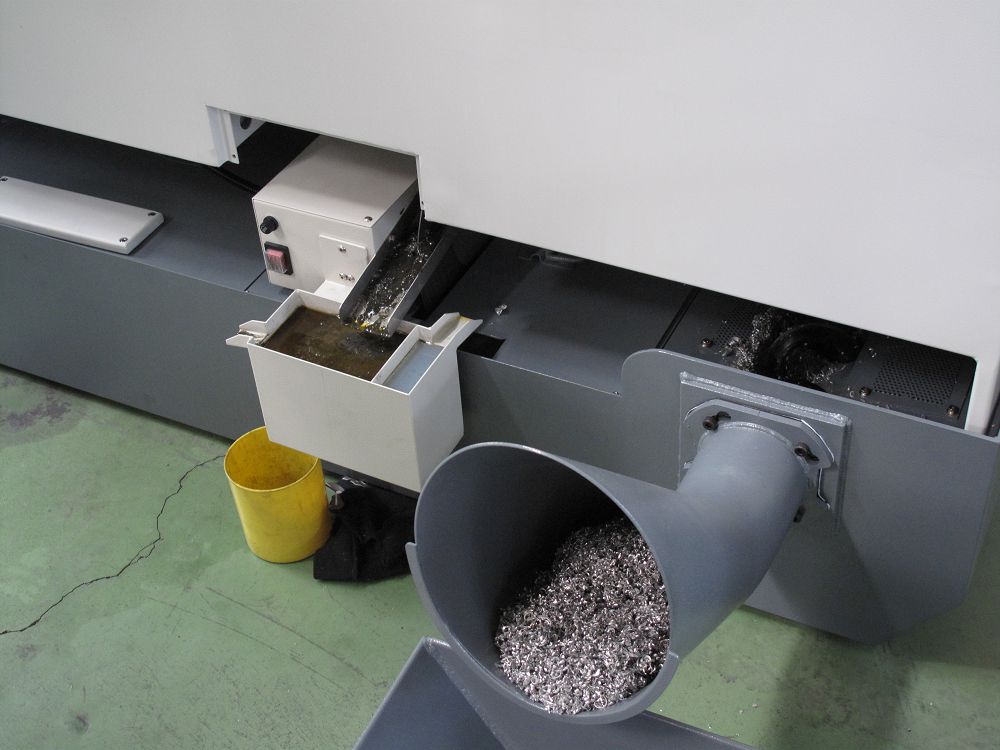

| High pressure coolant gun (standard) | Disk type oil skimmer (standard) |
| Item/Model No. | Unit | VMC-1000 |
| Travel | ||
| X/Y/Z | mm (in.) | 1,000/500/530 (39.37/19.69/20.87) |
| Z axis-Optional | mm (in.) | - |
| Distance between Columns | mm (in.) | - |
| Table | ||
| Dimension | mm (in.) | 1,000×500 (39.37×19.69) |
| T-slot (W×No.×CD) | mm | 18×3×160 |
| Max. Table Loading | kg (lb.) | 700 (1,540) |
| Spindle | ||
| Max. Speed-Standard | rpm | Direct drive 10,000 |
| Max. Speed-Optional | rpm | Direct drive 12,000 |
| Spindle Motor | kW (HP) | M: 5.5/7.5 (7/10) F: 7.5/11 (10/15) |
| Spindle Taper | BT40 | |
| Spindle Nose to Table Surface | mm (in.) | 90~640 (3.54~25.2) |
| Spindle Center to Column | mm (in.) | 550 (21.65) |
| Feedrate | ||
| Cutting Feedrate | mm/min (ipm) | 1~10,000 (0.04~393.7) |
| X axis Rapid Traverse | mm/min (ipm) | 30,000 (1181.1) |
| Y axis Rapid Traverse | mm/min (ipm) | 30,000 (1181.1) |
| Z axis Rapid Traverse | mm/min (ipm) | 24,000 (944.88) |
| ATC | ||
| Tools Capacity-Standard | pcs | Swing Arm 24 |
| Tools Capacity-Optional | pcs | - |
| Max. Tool Dia. | mm (in.) | ø80 (ø3.15) |
| Max. Tool Length | mm (in.) | 300 (11.81) |
| Max. Tool Weight | kg (lb.) | 7 (15.4) |
| General Information | ||
| Electrical Power Capacity | KVA | 20 |
| Dimension (W×D×H) | mm (in.) | 2,200×2,650×2,550 (110.24×86.61×98.43) |
| Machinery Weight (Net) | kg (lb.) | 4,200 (9,240) |
●STANDARD EQUIPMENT
1. Full Enclosure Splash Guard
2. X, Y and Z Ball Linear Guide Ways
3. 2-rail Slide Construction for Rigid Y-axis Motion
4. Telescopic Cover on Three Axes
5. Cutting Coolant Unit
6. Auto Lubrication System
7. Air Blast Through Spindle Taper
8. Air Blow
9. Spindle Oil Chiller
10. Heat Exchanger in Electric Cabinet
11. Disk Type Oil Skimmer
12. Spindle Splash Ring
13. Floating Drawbar System
14. Spiral Type Chip Conveyor with Chip Cart
15. Servo Brake System on Z-axis
16. High Pressure Coolant Gun
17. Work Lamp and Alarm Indicator
18. Service Tools and Leveling Bolts
19. Manual Pulse Generator (Hand-wheel)
20. Mechanical and Electrical Operation Manuals
21. Precision Check Data
22. One Year Warranty for Machine under Normal Operation (From the Date on Bill of Lading)
23. Warranty of Controller depend on Buyer's Location
●OPTIONAL ACCESSORIES
1. Direct-drive 12,000rpm Spindle (5.5/7.5kW, M70)
2. 4th Axis Preparation
3. 4th Axis Rotary Table
4. Tool Setting Probe
5. Workpiece Measurement
6. Coolant Flush System (Rear Side, for Chip Removal)
7. Air Conditioner in Electric Cabinet
8. Hinge Type Chip Conveyor
9. Transformer
10. Door Interlock
11. CE
* KAMIOKA reserves the right to change design, color or spec without prior notice.
