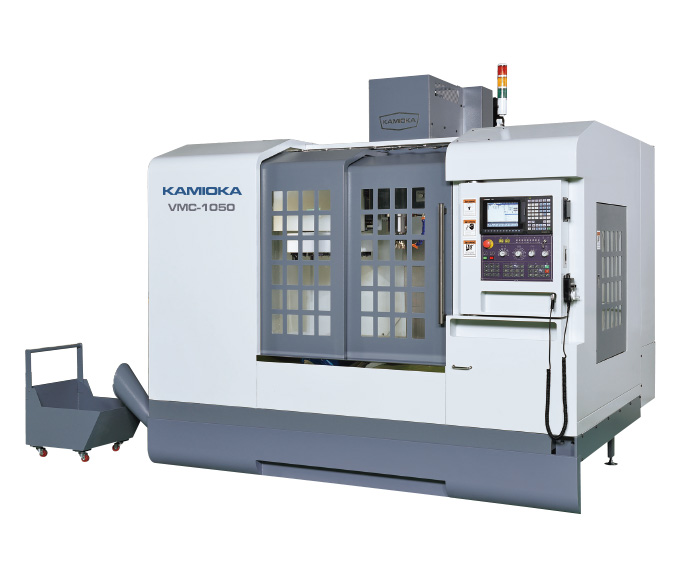

High Performance Vertical Machining Center PERFORMA VMC-1050S / VMC-1050B
| 分享到： |  |
| FEATURES | |
 |
 |
|

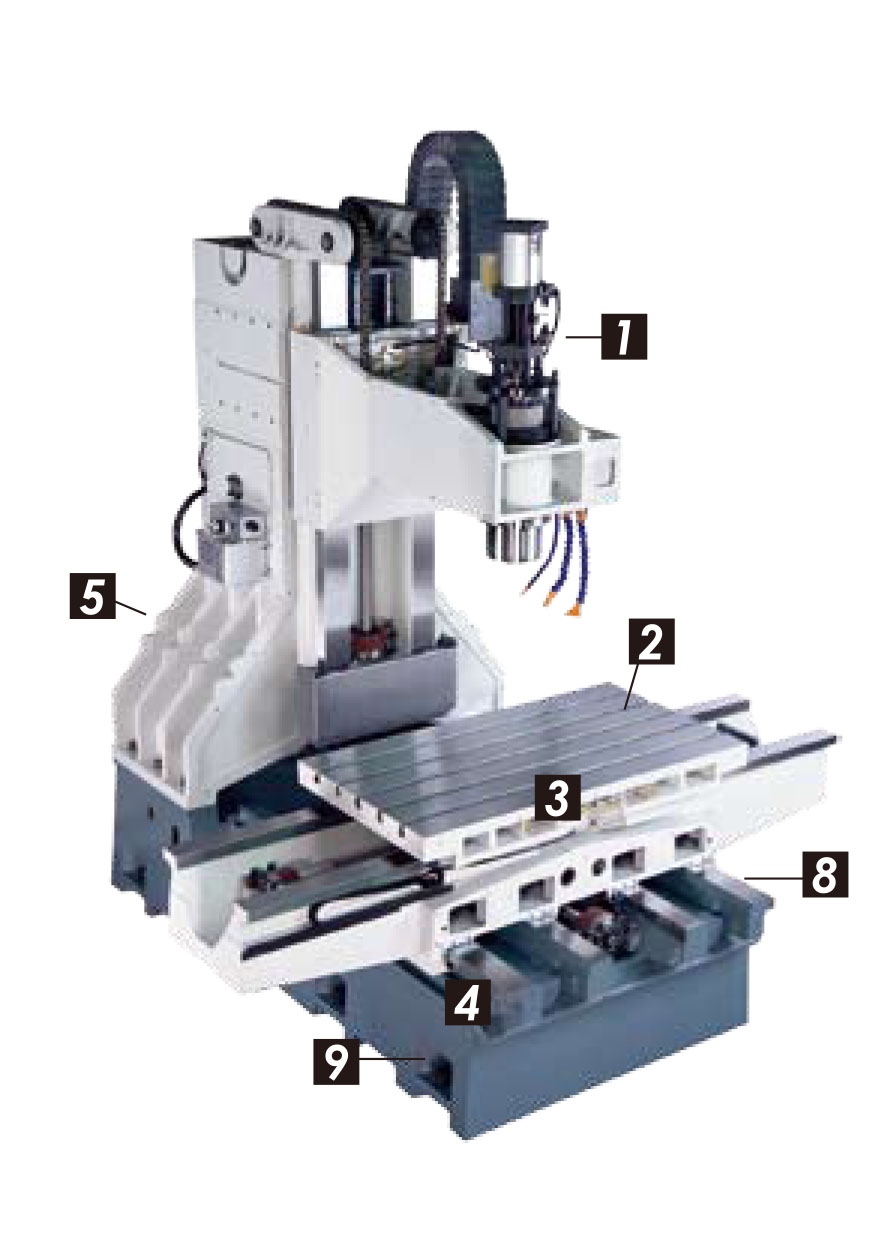

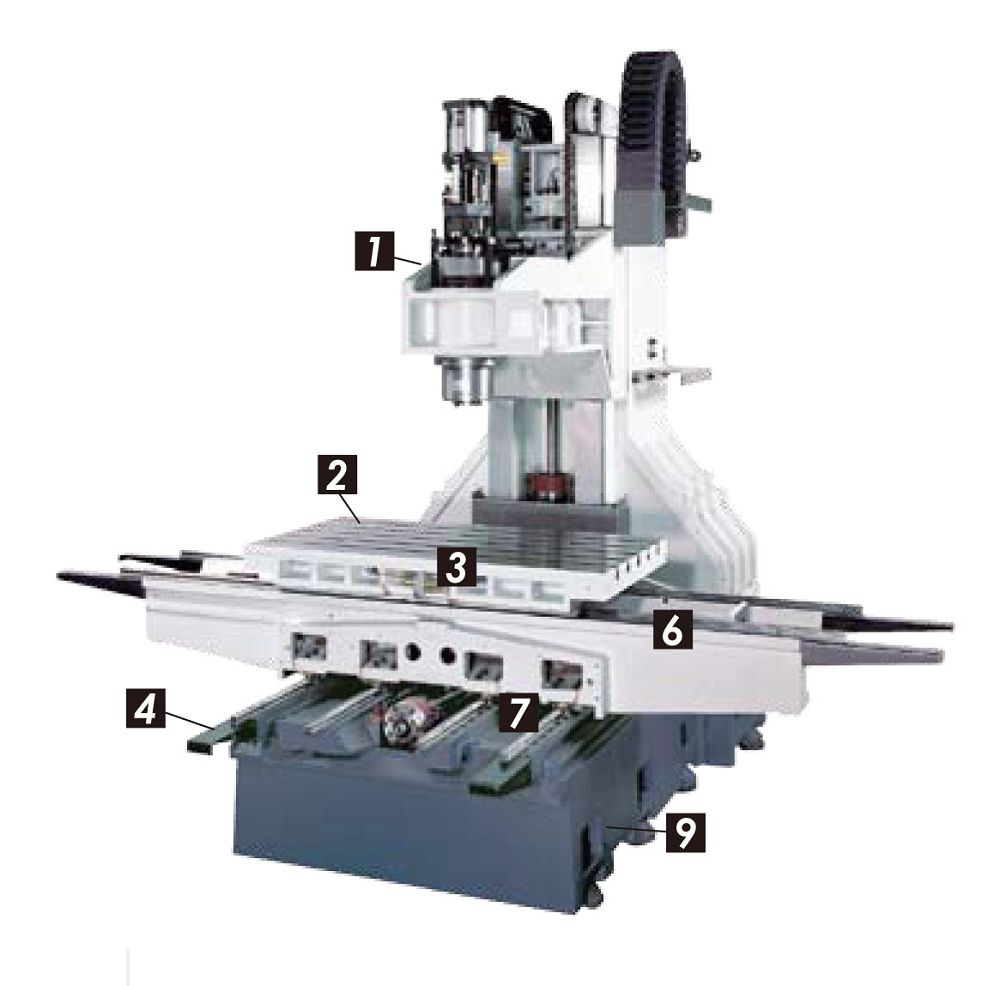

1. Spindle floating drawbar system 2. Entire support worktable 3. Centralized lubrication system 4. Widest saddle support base to 5. Stronger A-shape design with rib-braced column construction 6. 6 points contacted support between saddle and worktable 7. 8 points contacted support between saddle and base foundation 8. Widened 4-rail slide construction for rigid Y-axis motion 9. 8 points contacted leveling bolts and blocks |
|
| Item/Model No. | Unit | VMC-1050S / VMC-1050B |
| Travel | ||
| X/Y/Z | mm (in.) | 1,050/600/600 (41.34/23.62/23.62) |
| Z axis-Optional | mm (in.) | - |
| Distance between Columns | mm (in.) | - |
| Table | ||
| Dimension | mm (in.) | 1,100×600 (43.31×23.62) |
| T-slot (W×No.×CD) | mm | 18×5×100 |
| Max. Table Loading | kg (lb.) | 900 (1,980) |
| Spindle | ||
| Max. Speed-Standard | rpm | Belt drive 10,000 |
| Max. Speed-Optional | rpm | Direct drive 10,000 |
| Spindle Motor | kW (HP) | 7.5/11 (10/15) |
| Spindle Taper | BT40 | |
| Spindle Nose to Table Surface | mm (in.) | 90~690 (3.54~27.17) |
| Spindle Center to Column | mm (in.) | 650 (22.59) |
| Feedrate | ||
| Cutting Feedrate | mm/min (ipm) | 1~10,000 (0.04~393.7) |
| X axis Rapid Traverse | mm/min (ipm) | 24,000 (944.88) |
| Y axis Rapid Traverse | mm/min (ipm) | 24,000 (944.88) |
| Z axis Rapid Traverse | mm/min (ipm) | 18,000 (708.66) |
| ATC | ||
| Tools Capacity-Standard | pcs | Swing Arm 24 |
| Tools Capacity-Optional | pcs | - |
| Max. Tool Dia. | mm (in.) | ø75 (ø2.95) |
| Max. Tool Length | mm (in.) | 250 (9.84) |
| Max. Tool Weight | kg (lb.) | 7 (15.4) |
| General Information | ||
| Electrical Power Capacity | KVA | 22.5 |
| Dimension (W×D×H) | mm (in.) | 3,000×2,615×2,535 (118.11×102.95×99.8) |
| Machinery Weight (Net) | kg (lb.) | 6,350 (13,970) |
●STANDARD EQUIPMENT
1. Full Enclosure Splash Guard
2. X, Y Ball Linear Guide Ways; Z Box Guide Way (VMC-1050S) or X, Y and Z Box Guide Ways (VMC-1050B)
3. 4-rail Slide Construction for Rigid Y-axis Motion
4. Telescopic Cover on Three Axes
5. Cutting Coolant Unit
6. Auto Lubrication System
7. Air Blast Through Spindle Taper
8. Air Blow
9. Spindle Oil Chiller
10. Heat Exchanger in Electric Cabinet
11. Disk Type Oil Skimmer
12. Spindle Splash Ring
13. Floating Drawbar System
14. Spiral Type Chip Conveyor with Chip Cart
15. Mechanical Chain Type Counterweight Balance System on Z-axis
16. Servo Brake System on Z-axis
17. High Pressure Coolant Gun
18. Work Lamp and Alarm Indicator
19. Service Tools and Leveling Bolts
20. Manual Pulse Generator (Hand-wheel)
21. Mechanical and Electrical Operation Manuals
22. Precision Check Data
23. One Year Warranty for Machine under Normal Operation (From the Date on Bill of Lading)
24. Warranty of Controller depend on Buyer's Location
●OPTIONAL ACCESSORIES
1. Direct-drive 10,000rpm Spindle
2. 4th Axis Preparation
3. 4th Axis Rotary Table
4. Tool Setting Probe
5. Workpiece Measurement
6. Coolant Through Spindle
7. Coolant Flush System (Rear Side, for Chip Removal)
8. Air Conditioner in Electric Cabinet
9. Hinge Type Chip Conveyor
10. Transformer
11. Door Interlock
12. CE
* KAMIOKA reserves the right to change design, color or spec without prior notice.
