High Performance VMC

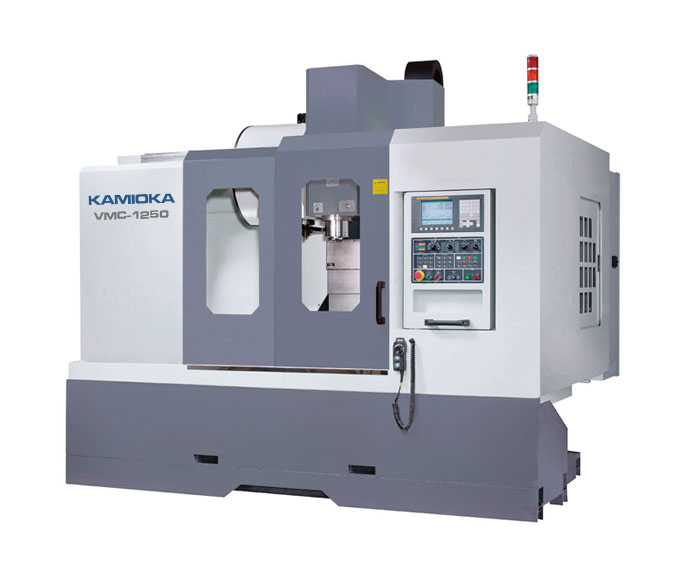

High Performance Vertical Machining Center PERFORMA VMC-1250
| 分享到： |  |
| FEATURES | |
 |

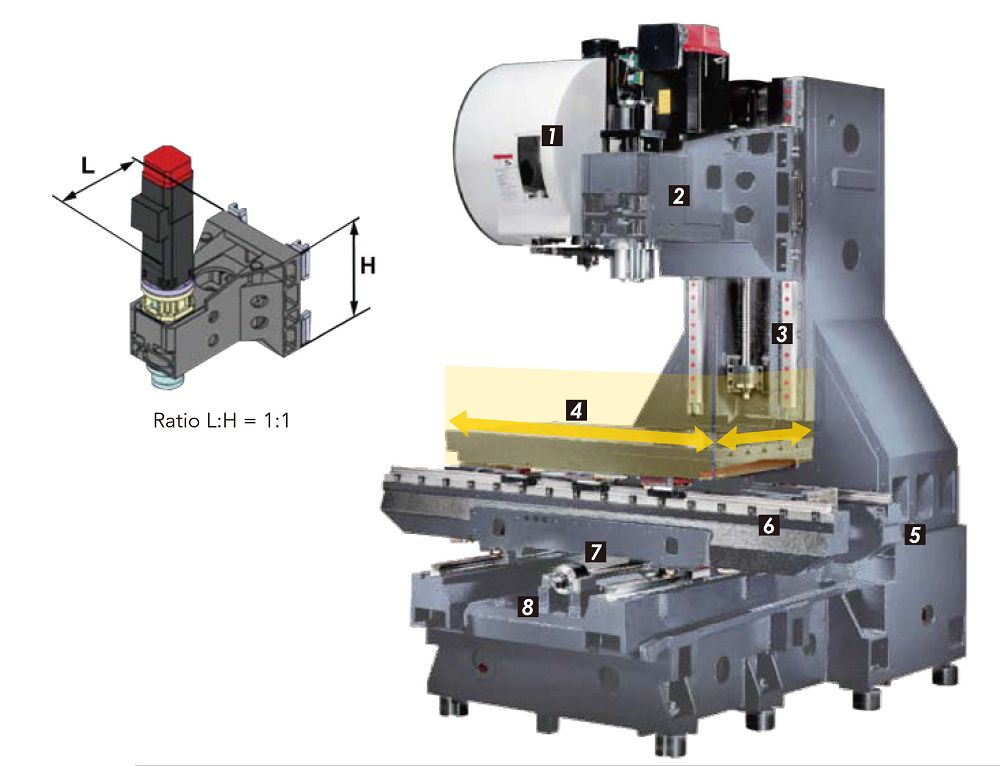

1.The swing-arm 24 pieces auto tool changer is subject to a running test of one million times to guarantee maximum dependability. 2.Optimal ratio (L/H) 1:1 spindle head results in excellent cutting capacity. 3.High precision roller type linear guide ways 4.Max. working table 1350x600mm 5.Oversized base and column, reinforced column bottom and solid Z-axis structure assure vibration-free cutting. 6.X-axis is equipped with 6 blocks 7.Saddle and table are one box-type construction with an increased height on structural parts, featuring lightweight and high rigidity. 8.Extra wide span between linear ways effectively upgrades dynamic accuracy. |
| Item/Model No. | Unit | VMC-1250 |
| Travel | ||
| X/Y/Z | mm (in.) | 1,250/600/600 (49.21/23.62/23.62) |
| Z axis-Optional | mm (in.) | - |
| Distance between Columns | mm (in.) | - |
| Table | ||
| Dimension | mm (in.) | 1,350×600 (53.15×23.62) |
| T-slot (W×No.×CD) | mm | 18×5×100 |
| Max. Table Loading | kg (lb.) | 1,200 (2,640) |
| Spindle | ||
| Max. Speed-Standard | rpm | Belt drive 10,000 |
| Max. Speed-Optional | rpm | Direct drive 10,000 |
| Spindle Motor | kW (HP) | 11/15 (15/20) |
| Spindle Taper | BT40 | |
| Spindle Nose to Table Surface | mm (in.) | 100~700 (3.94~27.56) |
| Spindle Center to Column | mm (in.) | 650 (22.59) |
| Feedrate | ||
| Cutting Feedrate | mm/min (ipm) | 1~10,000 (0.04~393.7) |
| X axis Rapid Traverse | mm/min (ipm) | 30,000 (1181.1) |
| Y axis Rapid Traverse | mm/min (ipm) | 30,000 (1181.1) |
| Z axis Rapid Traverse | mm/min (ipm) | 24,000 (944.88) |
| ATC | ||
| Tools Capacity-Standard | pcs | Swing Arm 24 |
| Tools Capacity-Optional | pcs | - |
| Max. Tool Dia. | mm (in.) | ø75 (ø2.95) |
| Max. Tool Length | mm (in.) | 250 (9.84) |
| Max. Tool Weight | kg (lb.) | 7 (15.4) |
| General Information | ||
| Electrical Power Capacity | KVA | 25 |
| Dimension (W×D×H) | mm (in.) | 3,450×2,160×2,850 (137.8×86.61×112.2) |
| Machinery Weight (Net) | kg (lb.) | 7,500 (16,500) |
●STANDARD EQUIPMENT
1. Full Enclosure Splash Guard
2. X, Y and Z Roller Linear Guide Ways
3. 2-rail Slide Construction for Rigid Y-axis Motion
4. Telescopic Cover on Three Axes
5. Cutting Coolant Unit
6. Auto Lubrication System
7. Air Blast Through Spindle Taper
8. Air Blow
9. Heat Exchanger in Electric Cabinet
10. Spindle Splash Ring
11. Spiral Type Chip Conveyor with Chip Cart
12. Servo Brake System on Z-axis
13. Work Lamp and Alarm Indicator
14. Service Tools and Leveling Bolts
15. Manual Pulse Generator (Hand-wheel)
16. Mechanical and Electrical Operation Manuals
17. Precision Check Data
18. One Year Warranty for Machine under Normal Operation (From the Date on Bill of Lading)
19. Warranty of Controller depend on Buyer's Location
●OPTIONAL ACCESSORIES
1. Direct-drive 10,000rpm Spindle
2. 4th Axis Preparation
3. 4th Axis Rotary Table
4. Tool Setting Probe
5. Workpiece Measurement
6. Coolant Through Spindle
7. Spindle Oil Chiller
8. Air Conditioner in Electric Cabinet
9. Hinge Type Chip Conveyor
10. Transformer
11. Door Interlock
12. CE
* KAMIOKA reserves the right to change design, color or spec without prior notice.
