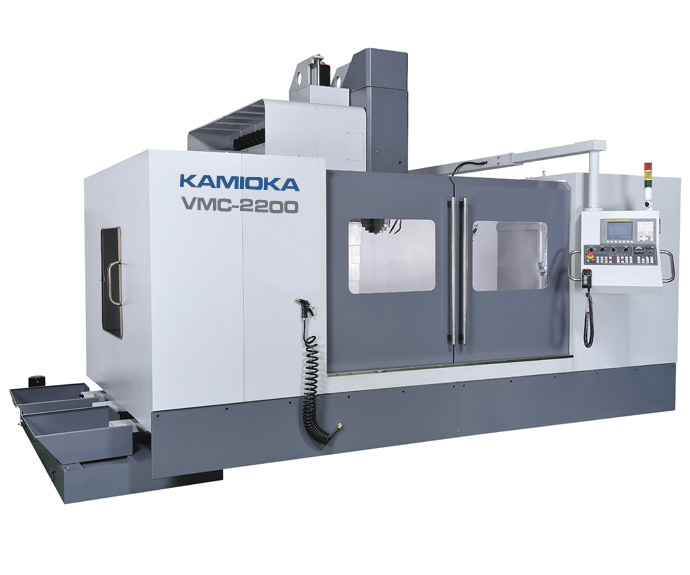

Heavy Duty Vertical Machining Center GRAVITY VMC-2200
| 分享到： |  |
| FEATURES | |
 |
 |
| Beefy structural machine construction with unique structure for X under Y-axis | Rigid quadro-guideway support with heavier table loading capacity |
 |
 |
| Well-scraped box type guideways with wider working area | Powerful 4000/6000rpm BT50 taper 2-step gear-drive spindle head with max. 520Nm torque |
| SAMPLE APPLICATION | |
 |
 |
| Item/Model No. | Unit | VMC-2200 |
| Travel | ||
| X/Y/Z | mm (in.) | 2,200/1,000/900 (86.61/39.37/35.43) |
| Z axis-Optional | mm (in.) | - |
| Distance between Columns | mm (in.) | - |
| Table | ||
| Dimension | mm (in.) | 2,200×1,000 (86.61×39.37) |
| T-slot (W×No.×CD) | mm | 22×7×150 |
| Max. Table Loading | kg (lb.) | 3,000 (6,600) |
| Spindle | ||
| Max. Speed-Standard | rpm | Gear drive 6,000 |
| Max. Speed-Optional | rpm | Belt drive 8,000 or Direct drive 10,000 |
| Spindle Motor | kW (HP) | 15/18.5 (20/25) |
| Spindle Taper | BT50 | |
| Spindle Nose to Table Surface | mm (in.) | 165~1,065 (6.5~41.93) |
| Spindle Center to Column | mm (in.) | 1,060 (41.73) |
| Feedrate | ||
| Cutting Feedrate | mm/min (ipm) | 1~10,000 (0.04~393.7) |
| X axis Rapid Traverse | mm/min (ipm) | 12,000 (472.44) |
| Y axis Rapid Traverse | mm/min (ipm) | 12,000 (472.44) |
| Z axis Rapid Traverse | mm/min (ipm) | 12,000 (472.44) |
| ATC | ||
| Tools Capacity-Standard | pcs | Swing Arm 24 |
| Tools Capacity-Optional | pcs | Swing Arm 32 / Chain 40 |
| Max. Tool Dia. | mm (in.) | ø110 (ø4.33) |
| Max. Tool Length | mm (in.) | 300 (11.81) |
| Max. Tool Weight | kg (lb.) | 15 (33) |
| General Information | ||
| Electrical Power Capacity | KVA | 45 |
| Dimension (W×D×H) | mm (in.) | 5,800×4,200×4,000 (228.35×165.35×157.48) |
| Machinery Weight (Net) | kg (lb.) | 16,500 (36,300) |
●STANDARD EQUIPMENT
1. Full Enclosure Splash Guard
2. Three Axes Box Guide Ways
3. Unique Structure for X under Y-axis
4. Telescopic Cover on Three Axes
5. Cutting Coolant Unit
6. Auto Lubrication System
7. Air Blast Through Spindle Taper
8. Air Blow
9. Spindle Oil Chiller
10. Coolant Through Axial Screws
11. Heat Exchanger in Electric Cabinet
12. Spiral Type Chip Conveyor with Chip Cart
13. Pneumatic Counterweight Balance System on Z-axis
14. Servo Brake System on Z-axis
15. High Pressure Coolant Gun and Air Gun
16. Work Lamp and Alarm Indicator
17. Service Tools and Leveling Bolts
18. Manual Pulse Generator (Hand-wheel)
19. Mechanical and Electrical Operation Manuals
20. Precision Check Data
21. One Year Warranty for Machine under Normal Operation (From the Date on Bill of Lading)
22. Warranty of Controller depend on Buyer's Location
●OPTIONAL ACCESSORIES
1. Belt-drive 8,000rpm Spindle (applied to Three Axes Roller Linear Guide Ways)
2. Direct-drive 10,000rpm Spindle (applied to Three Axes Roller Linear Guide Ways)
3. 4th Axis Preparation
4. 4th Axis Rotary Table
5. Tool Setting Probe
6. Workpiece Measurement
7. Optical Scales
8. Coolant Through Spindle
9. Side Flush System
10. Oil Skimmer
11. Air Conditioner in Electric Cabinet
12. Hinge Type Chip Conveyor
13. Transformer
14. Door Interlock
15. CE
* KAMIOKA reserves the right to change design, color or spec without prior notice.
