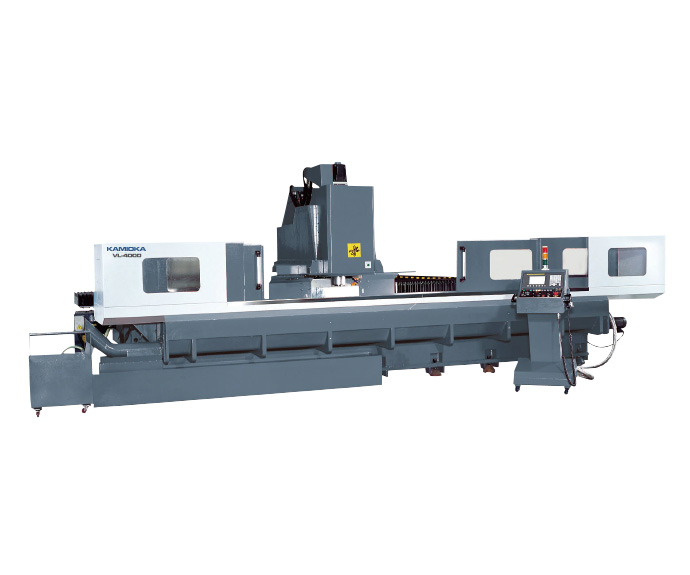

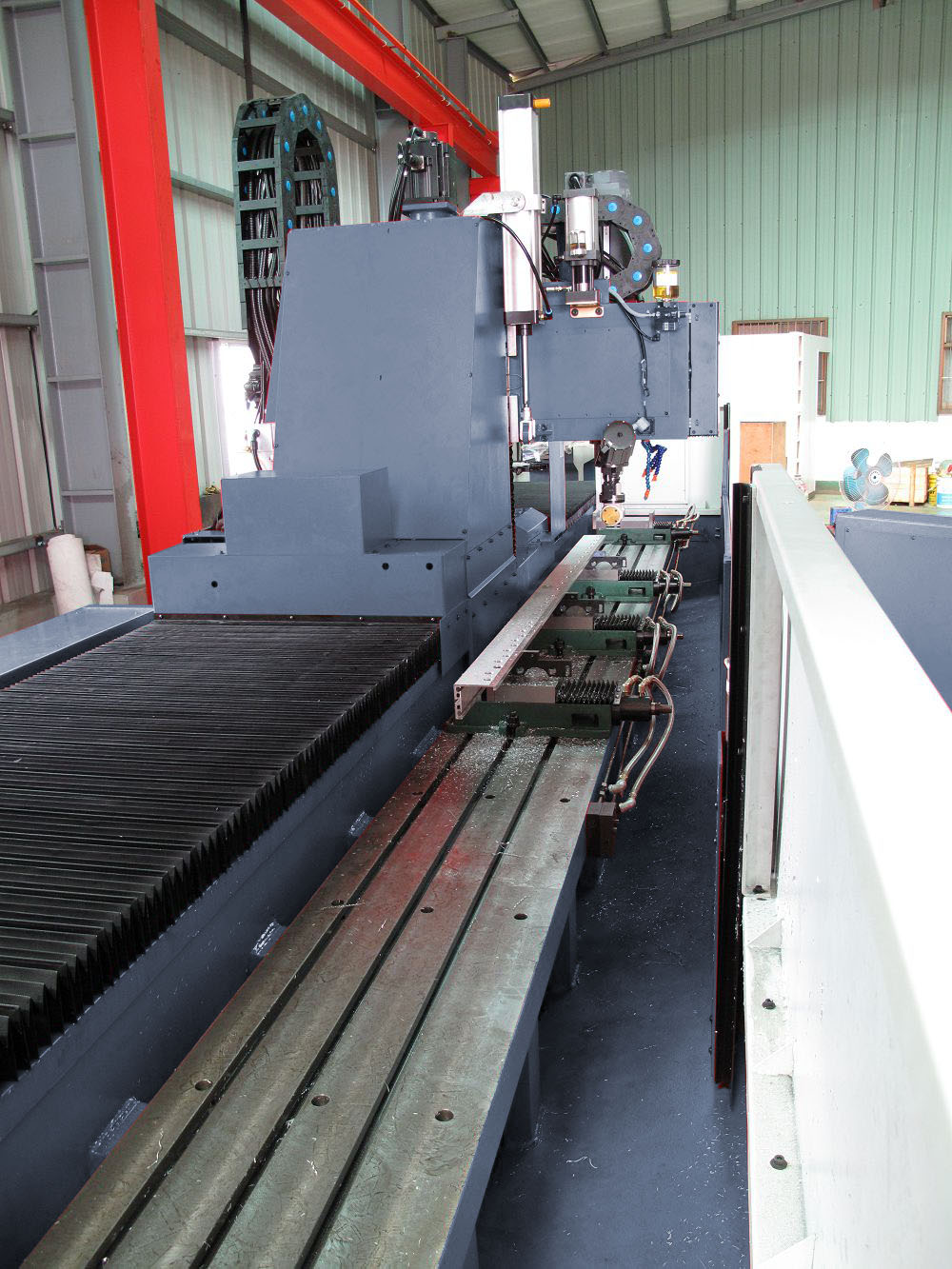

Moving-Column Vertical Machining Center LONGHORN VL-4000
| 分享到： |  |
| FEATURES | |
 |
 |

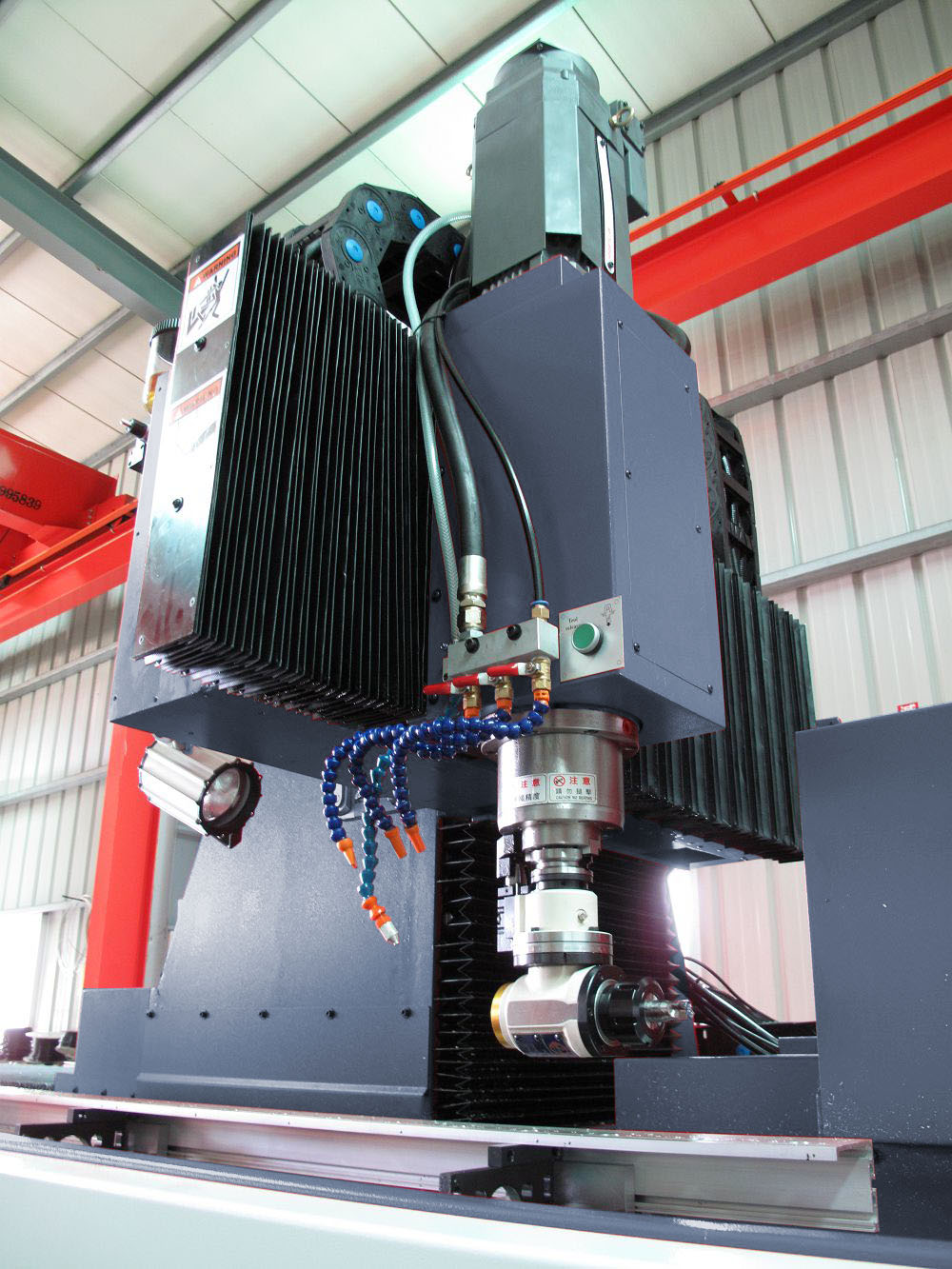

| The customization of column-moving structure for versatile machining purposes | High rigidity construction on Y and Z-axis travel |
 |
 |

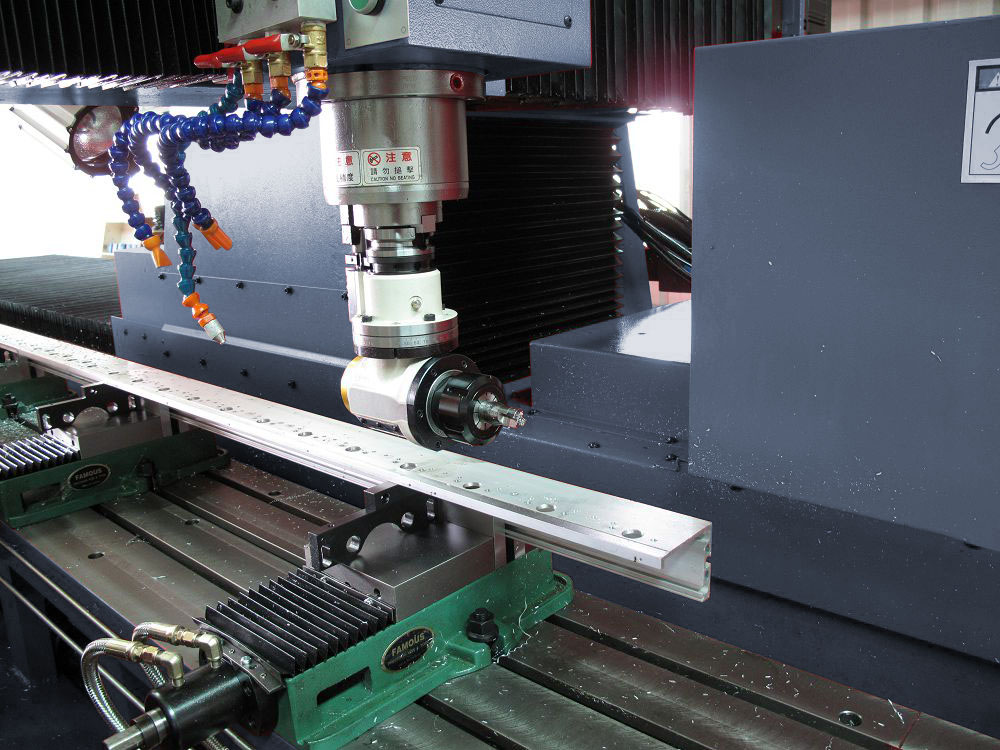

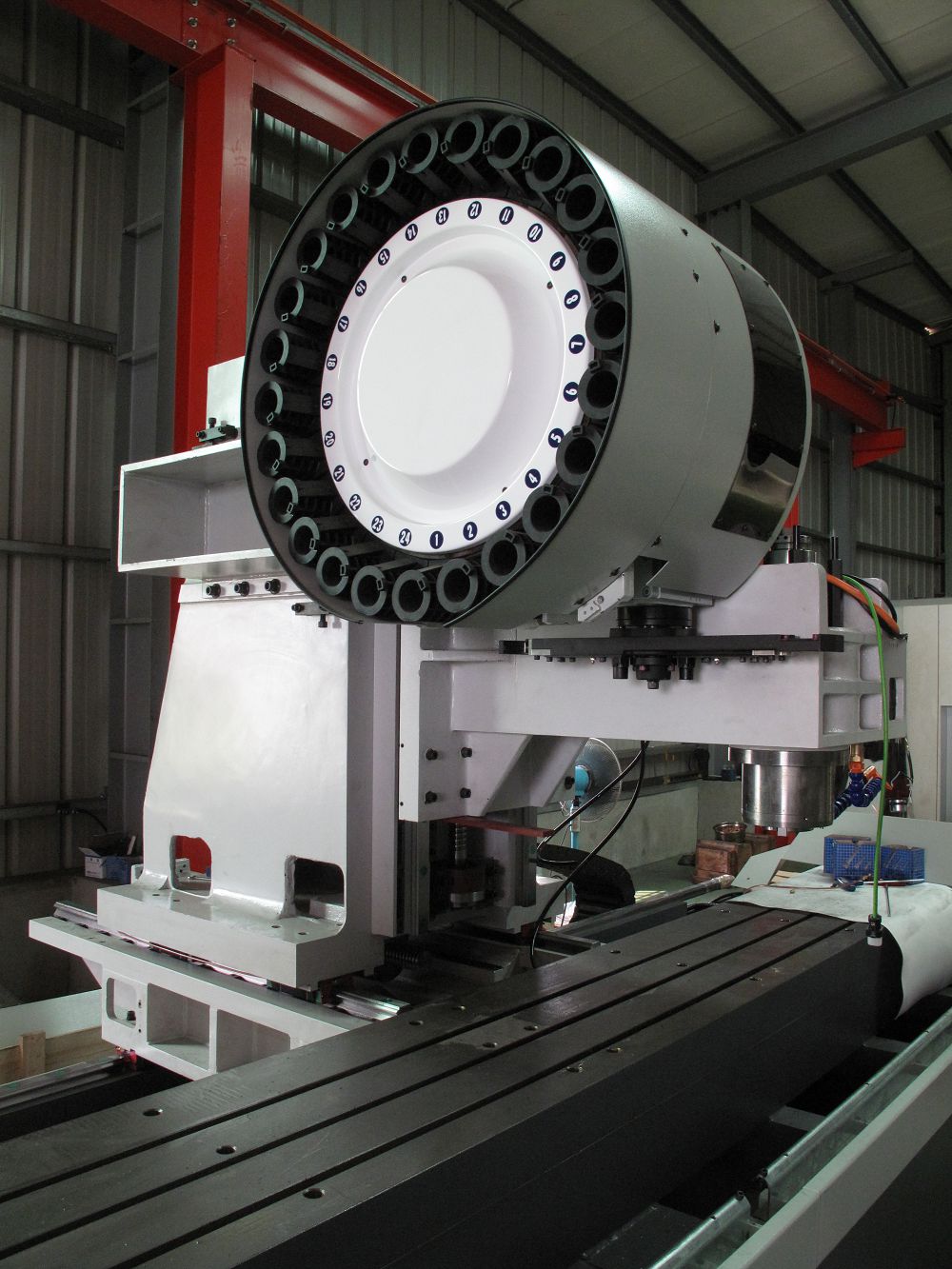

| Ideal for slender and threadlike workpiece machining | Compatible with 90-degree head to process in a single setup |
| Item/Model No. | Unit | VL-4000 |
| Travel | ||
| X/Y/Z | mm (in.) | 4,000/450/500 (157.48/17.72/19.69) |
| Z axis-Optional | mm (in.) | - |
| Distance between Columns | mm (in.) | - |
| Table | ||
| Dimension | mm (in.) | 4,000×400 (157.48×15.75) |
| T-slot (W×No.×CD) | mm | 18×3×150 |
| Max. Table Loading | kg (lb.) | 1,600 (3,520) |
| Spindle | ||
| Max. Speed-Standard | rpm | Belt drive 10,000 |
| Max. Speed-Optional | rpm | Direct drive 10,000 |
| Spindle Motor | kW (HP) | 7.5/11 (10/15) |
| Spindle Taper | BT40 | |
| Spindle Nose to Table Surface | mm (in.) | 180~530 (7.09~20.87) |
| Spindle Center to Column | mm (in.) | 520 (20.47) |
| Feedrate | ||
| Cutting Feedrate | mm/min (ipm) | 1~6,000 (0.04~236.22) |
| X axis Rapid Traverse | mm/min (ipm) | 12,000 (472.44) |
| Y axis Rapid Traverse | mm/min (ipm) | 15,000 (590.55) |
| Z axis Rapid Traverse | mm/min (ipm) | 15,000 (590.55) |
| ATC | ||
| Tools Capacity-Standard | pcs | Swing Arm 24 |
| Tools Capacity-Optional | pcs | - |
| Max. Tool Dia. | mm (in.) | ø100 (ø3.94) |
| Max. Tool Length | mm (in.) | 250 (9.84) |
| Max. Tool Weight | kg (lb.) | 7 (15.4) |
| General Information | ||
| Electrical Power Capacity | KVA | 40~50 |
| Dimension (W×D×H) | mm (in.) | 7,500×2,700×2,500 (295.28×106.30×98.43) |
| Machinery Weight (Net) | kg (lb.) | 16,500 (36,300) |
●STANDARD EQUIPMENT
1. Tailor-made Construction
2. X, Y and Z Linear Guide Ways
3. Semi-enclosed Splash Guard
4. Telescopic Cover (Bellow) on Three Axes
5. Cutting Coolant Unit
6. Auto Lubrication System
7. Air Blast Through Spindle Taper
8. Air Blow
9. Spindle Oil Chiller
10. Heat Exchanger in Electric Cabinet
11. Spiral Type Chip Conveyor w/Trolley
12. Servo Brake System on Z-axis
13. Work Lamp and Alarm Indicator
14. Service Tools and Leveling Bolts
15. Manual Pulse Generator (Hand-wheel)
16. Mechanical and Electrical Operation Manuals
17. Precision Check Data
18. One Year Warranty for Machine under Normal Operation (From the Date on Bill of Lading)
19. Warranty of Controller depend on Buyer's Location
●OPTIONAL ACCESSORIES
1. Direct-drive 10,000rpm Spindle
2. Tool Setting Probe
3. Workpiece Measurement
4. Oil Skimmer
5. Air Conditioner in Electric Cabinet
6. Hinge Type Chip Conveyor
7. Various Angle-head
8. Transformer
9. Door Interlock
10. CE
* KAMIOKA reserves the right to change design, color or spec without prior notice.
