Bench Lathe

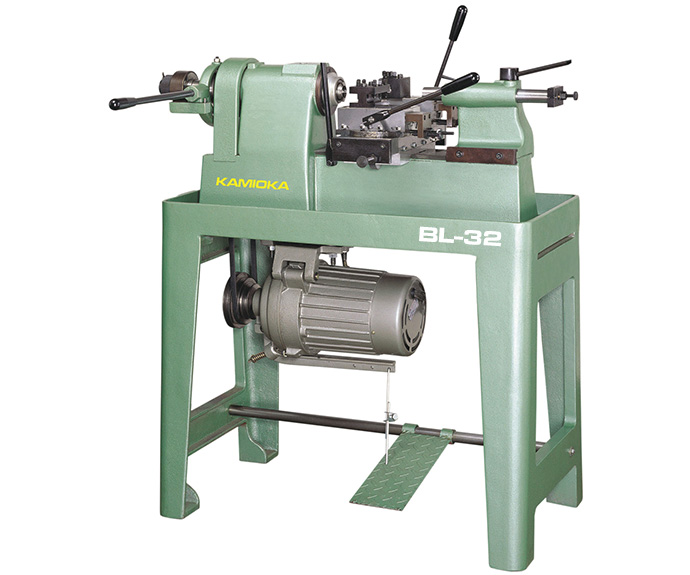

Bench Lathe BL-32
| 分享到： |  |
| FEATURES | |
 |
 |
| Hand Lever Collet Chucking (Standard) | Front and Rear Cross Slide (Standard) |
 |
 |
| Optional Up Cutting Tool Rack (or called Over Cutter, Fixed Movement up-down) | Collets are available for options upon request |
 |
 |
| Pneumatically Hydraulic Rotating Cylinder w/Collet Chucking (Options) | Pneumatically Automatic Collet Chucking Device (Options) |
| Item/Model No. | Unit | BL-32 |
| Max. Chuck Capacity | ||
| Bar Stock | mm (in.) | ø32 (ø1.26) |
| Square | mm (in.) | 22 (0.87) |
| Hexagonal | mm (in.) | 27 (1.06) |
| Elastic Clamp | mm (in.) | - |
| Slide Travel | ||
| Max. Main Slide Travel (Forward & Backward) | mm (in.) | 130 (5.12) |
| Max. Front Cross Slide Travel | mm (in.) | 130 (5.12) |
| Front Cross Slide Travel | 360° | |
| Max. Rear Cross Slide Travel | mm (in.) | 80 (3.15) |
| Lateral Adjustment of Rear Cross Slide | mm (in.) | 70 (2.76) |
| X/Z axis | mm (in.) | - |
| Tailstock | ||
| Tailstock Spindle Dia. | mm (in.) | ø30 (ø1.18) |
| Tailstock Spindle Taper | MT No.2 | |
| Tailstock Spindle Travel | mm (in.) | 130 (5.12) |
| Spindle | ||
| Spindle Speed | rpm | 1,300/1,650/2,650 |
| General Information | ||
| Motor | kW (HP) | 1.5 (2) |
| Dimension (W×D×H) | mm (in.) | 1,000×500×1,000 (39.37×19.69×39.37) |
| Machinery Weight (Net) | kg (lb.) | 300 (660) |
●STANDARD EQUIPMENT
1. Chuck Arbor
2. Service Tools
3. Clutch Motor
4. Operation Manual
5. One Year Warranty for Machine under Normal Operation (From the Date on Bill of Lading)
●OPTIONAL ACCESSORIES
1. Up Cutting Tool Rack
2. Coolant Equipment
3. Comprehensive Collet Chucks
4. Pneumatically Hydraulic Rotating Cylinder
5. Pneumatically Automatic Collet Chucking Device
* KAMIOKA reserves the right to change design, color or spec without prior notice.
